Texas Instruments DEM-OPA-RUN-EVM Op Amp Evaluation Module
Texas Instruments DEM-OPA-RUN-EVM Op Amp Evaluation Module (EVM) is a demonstration fixture that helps designers evaluate the operation and performance of TI high-speed, wide-bandwidth operational amplifiers. This unpopulated printed circuit (PC) board is compatible with dual-channel amplifier products offered in the 10-pin QFN (RUN) package. The Texas Instruments DEM-OPA-RUN-EVM is designed to accommodate multiple amplifier configurations for maximum flexibility and ease of use.
Features
- Configurable for single or split-supply operation
- Includes optional termination resistors on inputs and outputs for easy use with 50Ω test equipment
- Feedback network components for inverting and non-inverting configurations
- Standard SMA footprints for input and output signal connections
- High-speed optimized layout to reduce parasitic effects

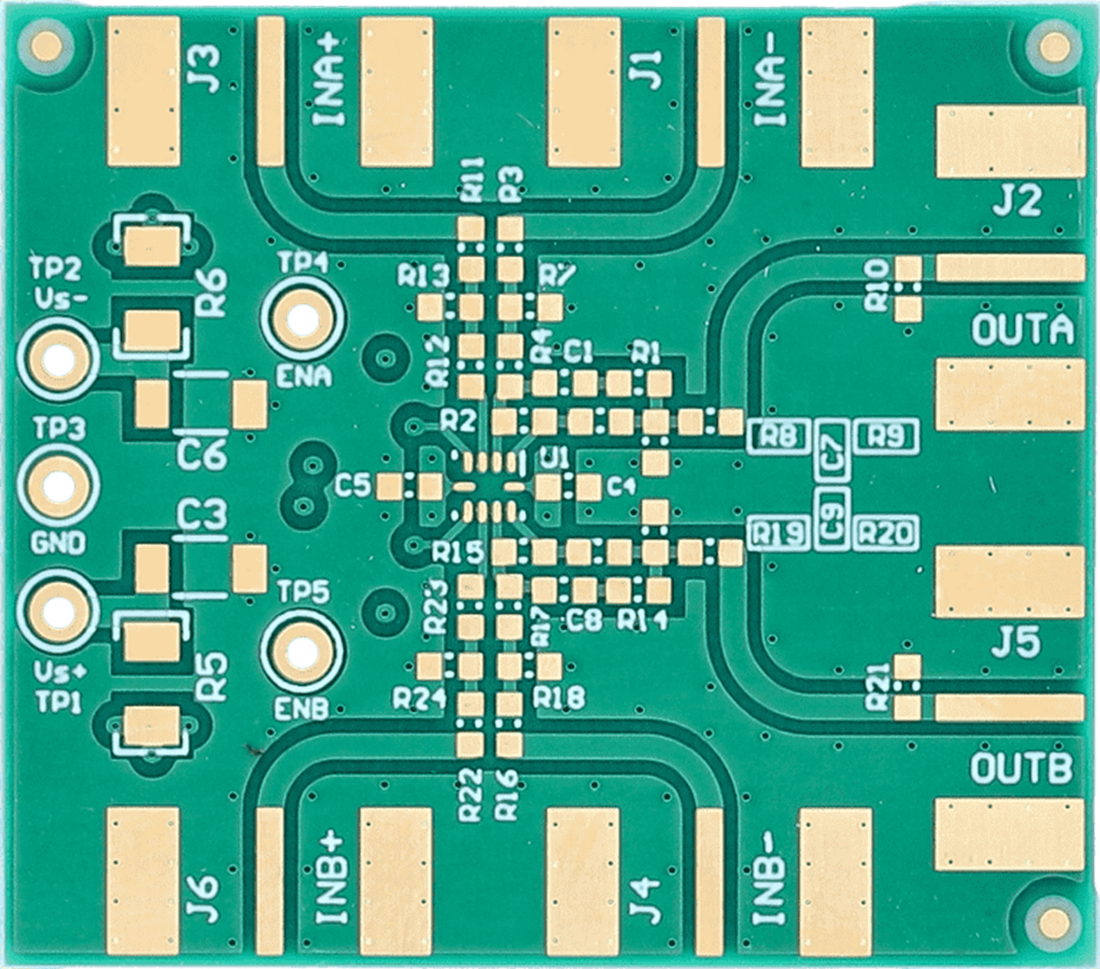

Board Layout
Related Product
Texas Instruments OPAx863/OPAx863-Q1 Low Power High-Speed Op Amps
Unity-gain stable, rail-to-rail input or output, voltage-feedback operational amplifiers.
