Richtek RT6052 High-Side Measurement Current Shunt Monitor

Richtek RT6052 High-Side Measurement Current Shunt Monitor combines a current-sense amplifier, bandgap reference, and a comparator with latching output. The RT6052 ascertains drops across shunts within 2V to 80V common-mode voltages and supports a 100V/V output voltage scale.

The RT6052 monitor features a built-in open-drain comparator and internal reference providing a 0.6V threshold. External dividers set the current trip point. The comparator offers a latching capability that can be made easily by grounding (or leaving open) the RESET pin.

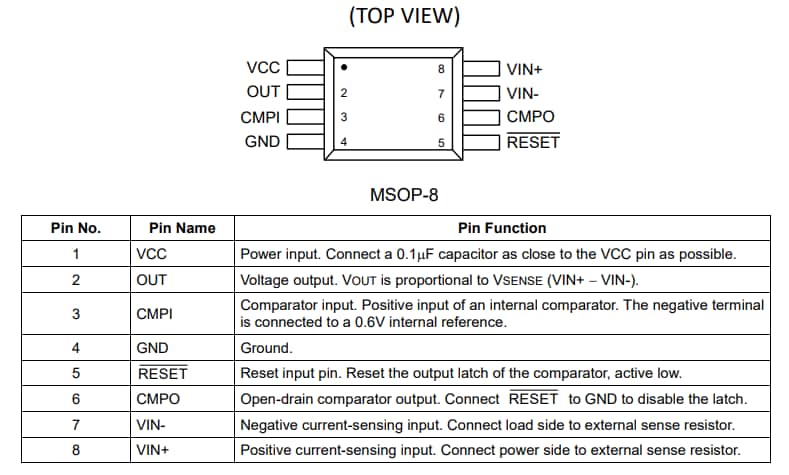

The Richtek RT6052 is enclosed in a small 8-pin MSOP package.

Features

  • High-accuracy current sensing
  • 3.5% maximum error over temperature
  • 2.9V to 18V power-supply range
  • RT6052 = 100V/V gain
  • 2V to 80V common-mode range
  • 0.6V internal voltage reference
  • Internal open-drain comparator
  • Latching capability on comparator
  • MSOP-8 packages

Applications

  • Servers, storage, and network equipment
  • Portable, battery-powered systems
  • Point of Load (POL) power modules
  • Notebook computers
  • High-end digital TVs

Simplified Application Circuit

Application Circuit Diagram - Richtek RT6052 High-Side Measurement Current Shunt Monitor

Functional Block Diagram

Richtek RT6052 High-Side Measurement Current Shunt Monitor
