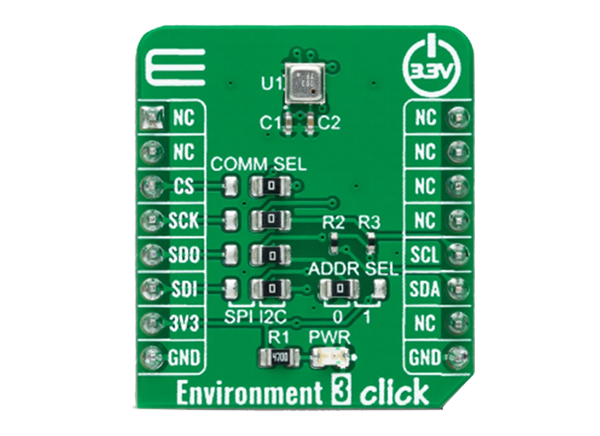

Mikroe Environment 3 Click
Mikroe Environment 3 Click is a compact add-on board that contains a four-in-one environmental measurement solution with the BME688. The Bosch Sensortech BME688 gas sensor offers Artificial Intelligence (AI) and integrated high-linearity/high-accuracy pressure, humidity, and temperature sensors. The BME688 detects Volatile Organic Compounds (VOCs), Volatile Sulfur Compounds (VSCs), and other gases such as carbon monoxide and hydrogen in part per billion (ppb) range.
The Mikroe Environment 3 Click provides absolute temperature accuracy, typical of ±1°C, and efficient performance when operated within the pressure, temperature, and humidity range of 300hPa-110hPa, 0°C-65°C, and 10%-90%RH. The board features a configurable host interface that supports both SPI and I2C serial communication.
The Environment 3 Click is ideal for indoor and outdoor air quality measurement, detection of unusual gases and smells, and various temperature and humidity-related applications.
Features
- On-board modules
- Bosch Sensortech BME688 air quality MEMS sensor that combines gas, humidity, temperature, and barometric pressure sensing
- Four-in-one environmental measurement solution
- Wide-ranging gas detection
- High-linearity
- High-accuracy and precision
- Low power consumption
- Configurable host interface
- I2C and SPI interface
- mikroBUS compatibility
- S (28.6mm x 25.4mm) Click board size
- 3.3V Input voltage
Applications
- Indoor and outdoor air quality measurement
- Detection of unusual gases and smells
- Various temperature and humidity-related applications
