M5Stack K007 FIRE IoT Development Kit

M5Stack K007 FIRE IoT Development Kit provides a 9-axis IMU sensor (6-axis posture acceleration measurement + 3-axis magnetic measurement). This equips with more hardware resources such as 16MB Flash + 4MB PSRAM, enhanced base (M5GO base and M5GO CHG base), and a larger battery. The FIRE development kit is a modular, stackable, scalable, and portable device and is powered with an ESP-32 core. The ESP-core makes it open source, low cost, full-function, and easy to handle new product development on all stages. This IoT development kit include circuit design, PCB design, software, mold design and production. Applications include Internet of Things (IoT) terminal controller, stem education product, and DIY creation.

The K007 development kit comes with three separable parts top part, middle part, and bottom part. The top part includes all kinds of processors, chips, sockets, 2.4G antenna, ESP32, power management IC, an LCD screen, and other interface components. The middle part is called the M5GO base which provides a lithium battery, M-BUS socket, LED bar, and three more GROVE Ports. The bottom part is a charge table, which can be connected to the M5GO base via POGO pins. This IoT development kit is highly efficient, covered with industrial-grade case, and ESP32-based development board. The K007 development kit integrates with Wi-Fi® and Bluetooth® modules.

Features

  • ESP32-based
  • Speaker, 3 buttons, and LCD (320 x 240)
  • TF card slot (16GB maximum size)
  • Battery socket and lipo battery
  • Extendable pins and holes
  • M-bus socket and pins
  • Development platform UIFlow, MicroPython, and Arduino

Specifications

  • ESP32 240MHz dual-core, 600 DMIPS, 520KB SRAM, Wi-Fi, and dual-mode Bluetooth
  • 16MB flash memory
  • 4MB PSRAM
  • 5V @ 500mA power input
  • 2", 320 x 240 colorful TFT LCD, ILI9342C, and maximum brightness 853nit IPS screen
  • 2.4G 3D antenna

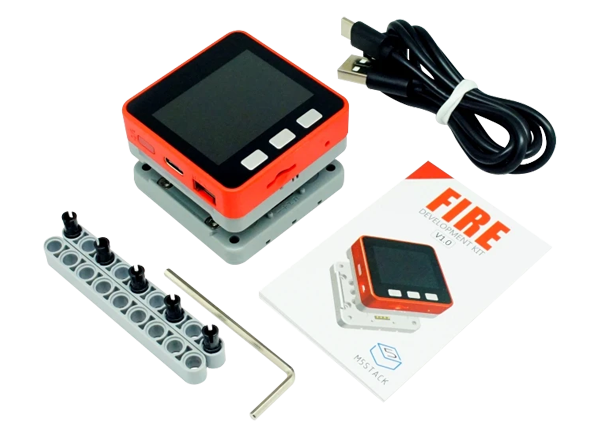

Kit Contents

  • 1x FIRE
  • 1x M5GO CHG base
  • 2x LEGO block
  • 5x LEGO connector
  • 1x M3 hex wrench
  • 1x Type-C USB (100cm)
  • 1x User manual

Applications

  • Internet of things terminal controller
  • Stem education product
  • DIY creation
