Analog Devices Inc. LT1762/LT1962 Demo Boards DC339A-A/B

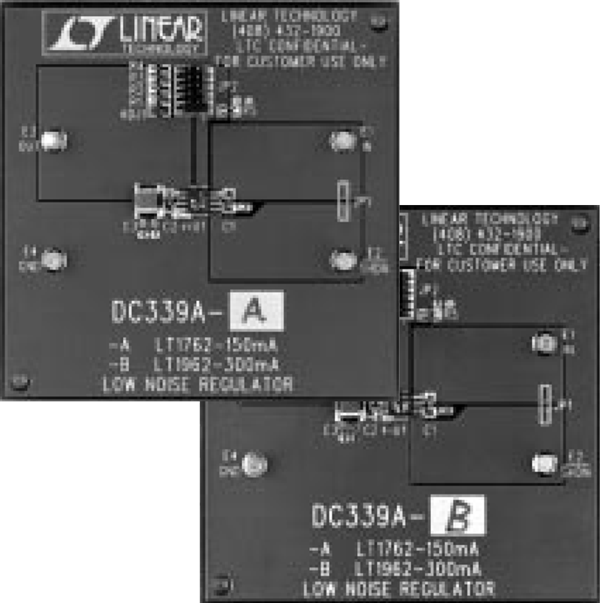

Analog Devices LT1762/LT1962 Demo Boards DC339A-A/B are demonstration and evaluation platforms for the LT1762 and LT1962 Low Noise Micropower LDO (Low Dropout) Regulators. The DC339A-A and DC339A-B each feature a typical application circuit and include a pre-mounted LT1762 or LT1962 in the 8-lead MSOP package. These evaluation boards have an input voltage range from 2.3V to 20.0V and a jumper-selectable output voltage that can be set to 1.22V, 2.5V, 3.0V, 3.3V, 5.0V, or a user-defined value. The low 20µVRMS (10Hz to 100kHz bandwidth) output noise and low 30µA quiescent current of the LT1762 and LT1962 make these devices ideal for voltage-controlled oscillators, RF power supplies, and local regulators in larger systems.
Features
- Fully populated board type
- DC339A-A: LT1762 150mA micropower LDO regulator in MSOP-8 package
- DC339A-B: LT1962 300mA micropower LDO regulator in MSOP-8 package
- Buck regulator topology
- 1 Output and non-isolated
- Solid turret terminals for easy connection to supplies and test equipment
- 2.3V to 20.0V Input voltage range
- 1.22V, 2.5V, 3.0V, 3.3V, 5.0V Output voltage options
- 1mV to 5mV Line regulation
- 30µA to 50µA Quiescent current
- 0.2% to 1.0% Load regulation
- 0.65V (Typical) SHDN pin threshold (On to Off)
- 0.8V (Typical) SHDN pin threshold (Off to On)
- 20µVRMS Output voltage noise
Applicable Products
Analog Devices Inc. LT1962 300mA Low Noise Micropower LDO Regulators
Low noise 300mA LDO micropower regulators with output options from 1.22V to 20.0V.
Analog Devices Inc. LT1762 150mA Low Noise Micropower LDO Regulators
Low Noise 150mA LDO Micropower Regulators with output options from 1.22V to 20.0V.
Package & Schematic
Board Layout
