4D LCD 43480272 4.3" TFT Liquid Crystal Displays

4D LCD 43480272 4.3" TFT Liquid Crystal Displays are color-active matrix LCD modules incorporating an amorphous silicon thin-film transistor. The 43480272 displays are composed of a color TFT-LCD panel, driver IC, FPC, and a backlight unit. The devices provide the options of a Resistive/Capacitive Touch Panel (RTP or CTP) with or without and a Cover Lens Bezel (CLB) with or without. The 4D LCD 43480272 4.3" TFT Liquid Crystal Displays have 480 x 272 pixels resolution.

Features

LCD Type: TFT / Transmissive / Normally white
Size: 4.3"
Touch Panel: Available in Non-Touch, Resistive Touch, and Capacitive Touch
Viewing Direction: 12:00
Gray Scale Inversion Direction: 6:00
Active Area (WxH): 95.04mm × 53.856mm
Dot Pitch (WxH): 0.198mm x 0.198mm
Display Resolution Pixels: 480 x 272
Interface Type: Parallel RGB 24-bit
Surface Luminance
- 4DLCD-43480272: 500cd/m² (typical)
- 4DLCD-43480272-RTP: 400cd/m² (typical)
- 4DLCD-43480272-CTP: 475cd/m² (typical)
- 4DLCD-43480272-CTP-CLB: 475cd/m² (typical)
16.7M color depth

OTA5180A driver IC
10 LEDs backlight type
RGB vertical stripe pixel arrangement
AG surface treatment
3.3V (typical) input voltage
Module size - W x H x T
- 4DLCD-43480272: 105.50mm x 67.20mm x 3.0mm
- 4DLCD-43480272-RTP: 105.50mm x 67.20mm x 4.05mm

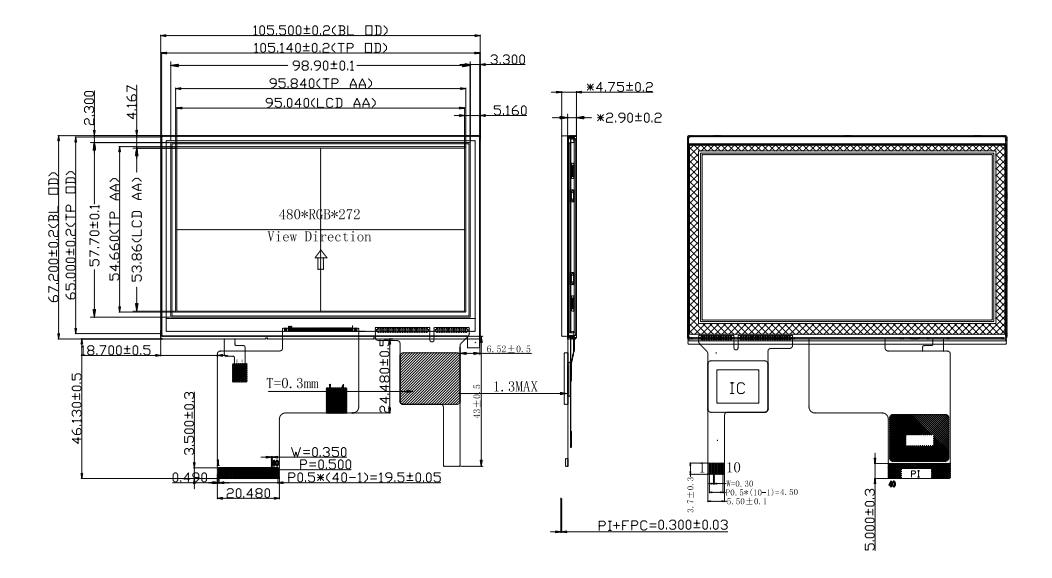

- 4DLCD-43480272-CTP: 105.50mm x 67.20mm x 4.75mm
- 4DLCD-43480272-CTP-CLB: 123.04mm x 84.46mm x 4.62mm (including CLB)
-20°C to +70°C operating temperature range
RoHS compliant
