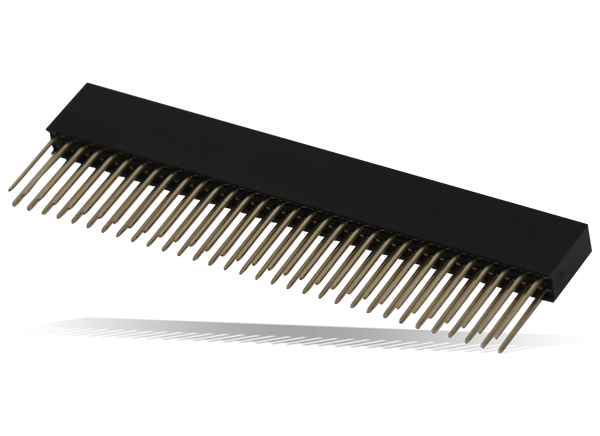

3M PC104 Connectors
3M PC104 Connectors feature a simple contact design to accommodate many standoff heights, including standard PC104 pin-and-socket connectors with rugged and reliable 64- and 40-contact male/female headers. The 2.54mm pitch PC104 connectors are available as primary connectors specified by PC/104: 8-bit J1/P1 and 16-bit J2/P2 in both stack-through and non-stack-through options.
Features
- Rugged and reliable 64- and 40-contact male/female headers
- Simple contact design to accommodate many standoff heights
- Available in solder tail
- Compact form factor and stacked design to meet tight space requirements of embedded applications
- Self-stacking bus eliminates the need and cost and bulk of backplanes and card cages
- Relaxed bus drive (6mA) lowers power consumption (to 1-2 watts per module) and minimizes component count
- Stack-through design is more rugged against shock and vibration effects
Applications
- Industrial control and factory automation
- Military/aerospace
- Medical
- Transportation
- Gaming
Specifications
- 3A current rating
- 5,000MΩ minimum insulation resistance
- 20mΩ maximum contact resistance
- 1000VAC withstanding voltage
- -40°C to +105°C operating temperature range
- Phosphor bronze contacts
- UL 94V-0, polyester nylon-6T housings

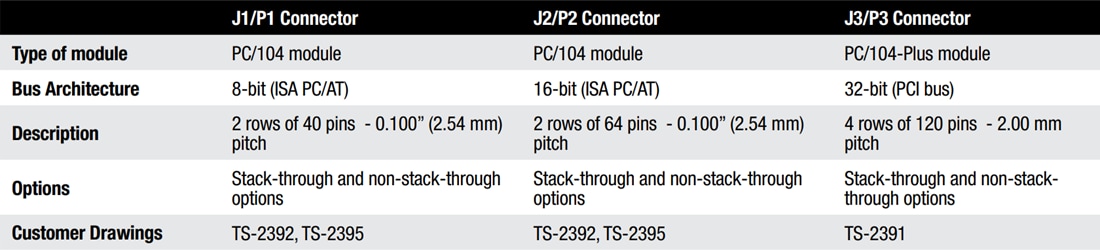

Connector Options
Associated Product
3M PC104 & PC104 Plus Connectors
Designed to meet the specifications of PC/104 Embedded-PC Modules in Embedded Systems Applications.
