Arduino 4 Relays Shield

Arduino.org 4 Relays Shield

Arduino.org 4 relays shield drives high power loads that cannot be connected to the digital I/O of the controller. The shield features 4 relays, with each relay providing 2 pole changeover contacts (NO and NC). The 2 changeover contacts have been put in parallel to increase the current limit of each output. 4 LED indicators display the state of each relay. 2 TinkerKit inputs, 2 TinkerKit outputs, and 2 TinkerKit TWI connectors are available on the shield.

Features
  • 5V operating voltage
  • 140mA coil current consumption (35mA per relay)
  • 30VDC, 2A single pole chargeover contact (maximum current)
  • 48V maximum load voltage
  • 60W maximum switching capacity

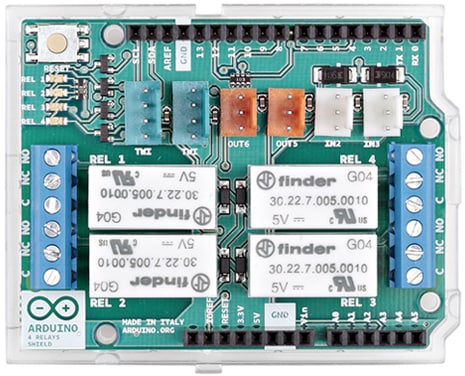

Front View
