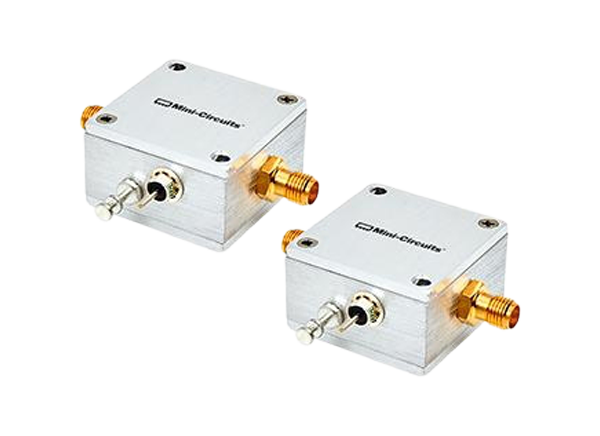

Mini-Circuits ZFL Coaxial Low Noise Amplifiers provide a 2.9dB low noise figure and a 0.1MHz to 1200MHz wideband frequency range. The ZFL components feature a 17V maximum DC voltage and a +5dBm input RF power. The Mini-Circuits ZFL Coaxial Low Noise Amplifiers offer a -20°C to +71°C operating temperature in a Y460 package.
Wideband range of 0.1MHz to 1200MHz
Rugged, shielded case
Gain control of 60dB typ.
Gain control voltage of 0V to +5V
Variable gain of +34db to -26dB
Low noise figure of 2.9dB typ.
Protected by US Patent 6,943,629
