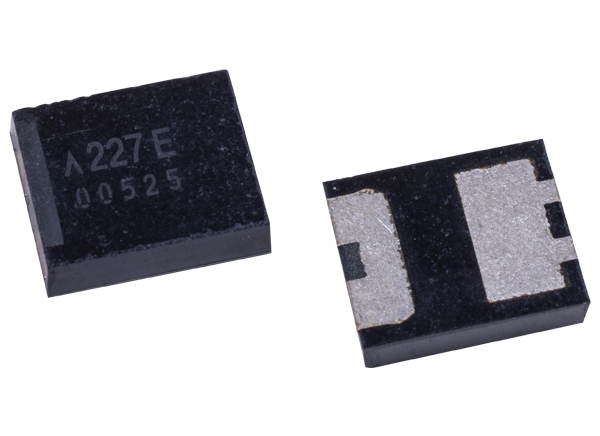

KYOCERA AVX J-CAP Capacitors with Conductive Polymer Electrodes are solid electrolytic chip capacitors that reduce ignition failure mode. With lower equivalent series resistance (ESR), the J-CAP undertab terminations provide high volumetric efficiency, high PCB assembly density, and high capacitance in smaller dimensions. KYOCERA AVX J-CAP Capacitors with Conductive Polymer Electrodes are 3x reflow 260°C compatible and are ideal for consumer applications such as mobiles, MP3s, and more. In addition to SSD and memory cards, the J-CAP series is an ideal fit for battery-powered portable electronic equipment, industrial alarms, smart power meters, and mobile devices such as cell phones, tablets, and wearable electronics.


  • Conductive polymer electrode reduces ignition failure mode
  • Lower ESR
  • 3x reflow 260°C compatible
  • Undertab terminations
    • High volumetric efficiency
    • High capacitance in smaller dimensions


  • SSDs (MLC, SLC, EFD, PCle)
  • Battery-powered portable equipment
  • Industrial alarms
  • Smart power meters
  • Mobile devices
  • Consumer goods


  • 6.3VDC rated voltage
  • 150µF capacitance
  • 4.7µF to 470µF capacitance range
  • ±20% capacitance tolerance
  • 300mΩ maximum ESR
  • 90µA maximum DCK
  • -55°C to +105°C operating temperature range
